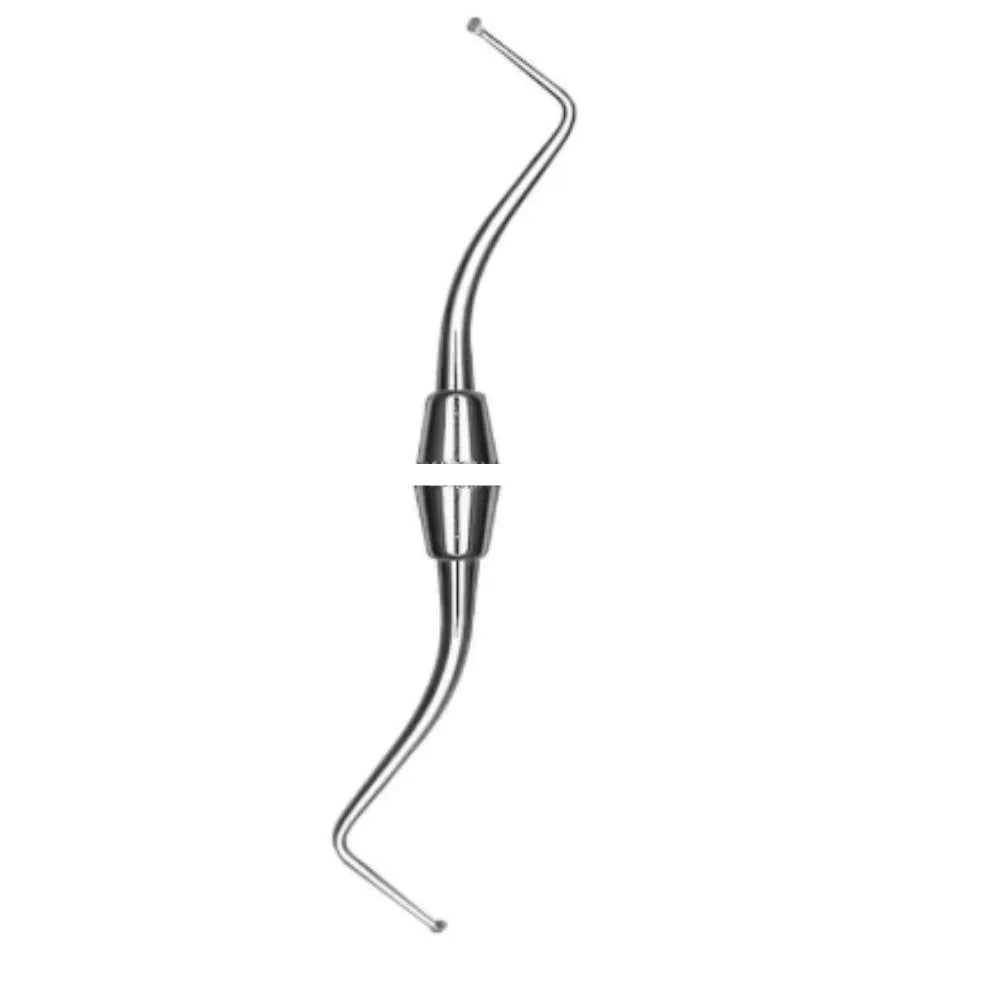

SurgiWorld – E1 Dental Excavator 1.2 mm, Double-Ended Spoon for Fine Caries Removal and Cavity Preparation

The E1 dental excavator 1.2 mm is the finest-diameter instrument in this excavator set, selected when the clinical priority is removing the absolute minimum amount of dentin necessary while ensuring all soft carious material is cleared from the preparation. In conservative caries management and in preparations that approach the pulp, the difference between a 1.2 mm and a 1.5 mm spoon is clinically significant: a larger spoon contacts a wider area of the preparation floor with each stroke, increasing the risk of engaging and removing sound dentin or of perforating a thin dentin bridge overlying the pulp chamber in a preparation where the remaining dentin depth is already minimal.

The [12-9-15] formula defines three parameters that determine how the instrument functions in the preparation. The first number, 12, represents the blade width in tenths of a millimetre - hence 1.2 mm. The second number, 9, is the blade length in millimetres from the shank bend to the cutting edge. The third number, 15, is the angle the blade makes with the long axis of the handle, expressed in centigrade. Together the 9 mm blade length and 15° angle position the semicircular cutting edge at the correct offset from the handle to reach the floor and walls of a cavity preparation without the handle contacting the occlusal tooth surface or the adjacent teeth.

Clinical use involves a lateral scraping and scooping motion directed against the softened carious dentin. The semicircular blade edge contacts the preparation wall and floor in a sweeping arc, lifting and removing the softened material in small controlled amounts. The double-ended configuration provides two working ends that are mirror images of one another, allowing the clinician to access both the mesial and distal walls of a preparation from a single instrument without changing to a second excavator. Medical-grade stainless steel, corrosion resistant, autoclavable. Maintain blade sharpness for effective caries removal - a dull spoon scrapes rather than cuts, increasing the lateral force required and reducing tactile feedback on tissue hardness.

Product Features

• E1 dental excavator 1.2 mm finest-diameter spoon in the E-series for controlled caries removal in small preparations and near the pulp floor
• Formula [12-9-15]: 1.2 mm blade width, 9 mm blade length, 15° blade-to-handle angle
• Semicircular cutting edge removes softened carious dentin in a sweeping lateral arc with minimal sound dentin contact
• Double-ended mirror-image configuration covers both preparation wall access angles from one instrument
• Select over E2 when cavity size or proximity to pulp requires the smallest possible blade footprint
• Medical-grade stainless steel, corrosion resistant, fully autoclavable; maintain blade sharpness for effective caries removal
