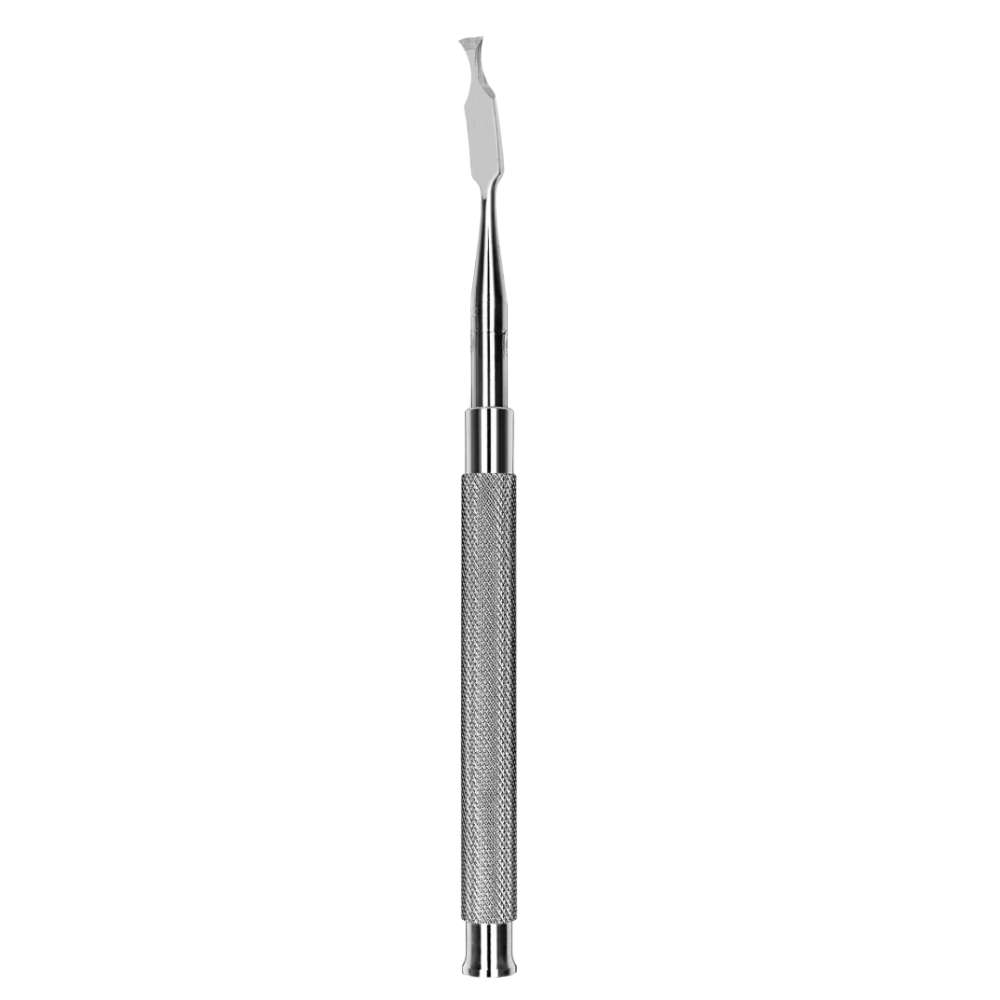

SurgiWorld – Ochsenbein 1 Periodontal Chisel, Single-Ended Tri-Bevel Bone Chisel for Osseous Recontouring

The Ochsenbein 1 periodontal chisel addresses one of the defining challenges of osseous surgery in the interproximal region: how to remove and recontour alveolar bone adjacent to the tooth at the crestal level without the instrument blade contacting the root surface, which would score the cementum and create iatrogenic root damage. The Ochsenbein pattern solves this with the semi-circular notch design - two concave indentations on the sides of the blade that are shaped to engage around the proximal surface of the tooth, positioning the cutting edge against the crestal bone and away from the root while providing a positive seating position against the tooth anatomy that stabilizes the instrument during the cutting stroke.

The tri-bevel cutting geometry provides three active edges in a single working end. The tip chisel edge removes bone at the crestal margin in a push stroke, the beveled notch edges trim the interdental col bone and the interproximal bone slopes simultaneously, and the semi-circular notch geometry prevents the blade from sliding apically onto the root surface under working pressure. This makes the Ochsenbein particularly effective for positive architecture recontouring - the procedure of reshaping the alveolar bone contour from reverse architecture (bone higher interdentally than at the radicular surface) to positive architecture that supports physiological gingival form after periodontal healing.

The Och-1 is used from the buccal approach, with the cutting edges on the convex face of the blade directed against the interproximal bone. For the same site from the lingual approach, or for the reverse-orientation access angle, the Och-2 is the companion instrument with its cutting edges on the concave face. Medical-grade stainless steel, autoclavable. Maintain blade sharpness for effective bone cutting - a dull Ochsenbein chisel requires mallet force where hand pressure should suffice and increases the risk of bone fracture rather than controlled shaving.

Product Features

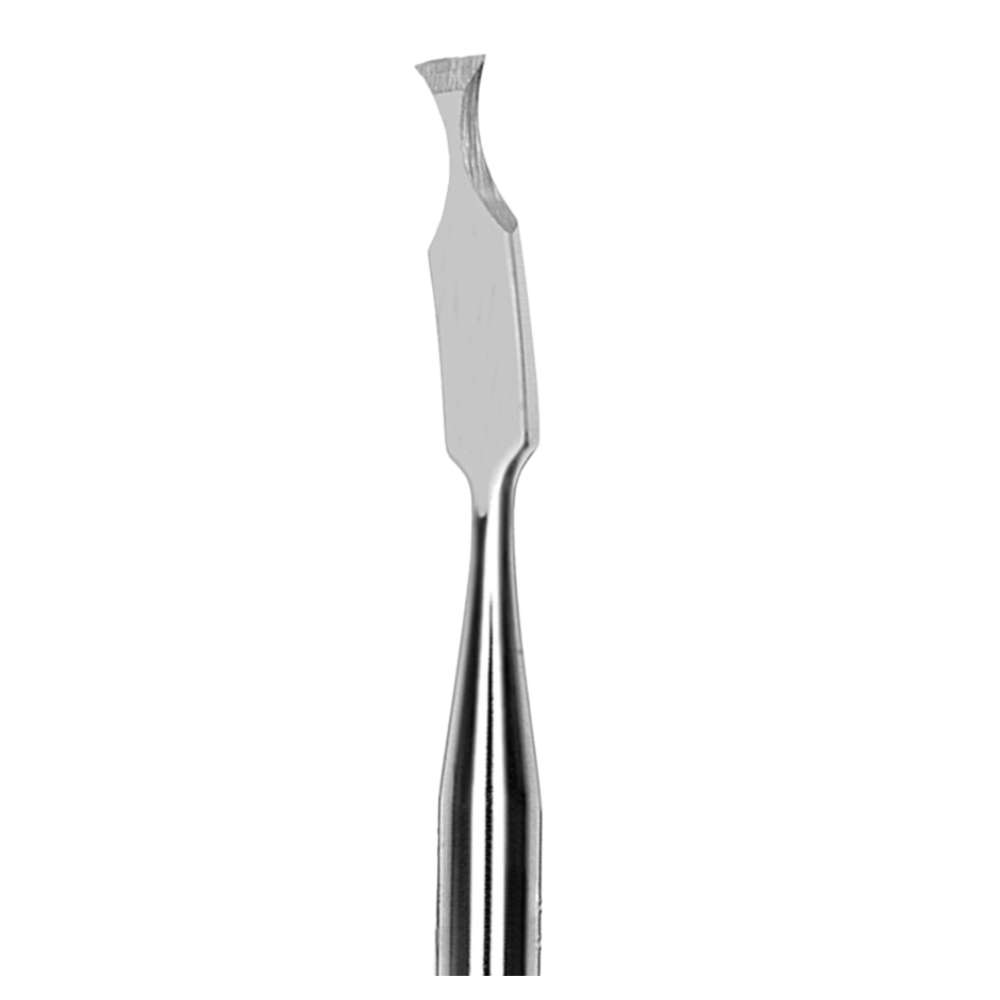

• Ochsenbein 1 periodontal chisel 5 mm tri-bevel blade with semi-circular notches engages around the tooth, protecting the root surface while directing cutting edges against interproximal crestal bone
• Tri-bevel design provides tip chisel edge and two notch side edges for bone removal at the crest and interproximal slopes simultaneously
• Semi-circular notch geometry stabilizes the instrument against the tooth anatomy and prevents apical migration onto the root surface under working pressure
• Cutting edges on convex face - pairs with Och-2 (concave face) for complete bilateral interproximal bone access
• Medical-grade stainless steel, corrosion resistant, fully autoclavable; maintain sharpness for controlled hand-pressure bone cutting

Och-1 vs Och-2: Both carry 5 mm tri-bevel blades with semi-circular notches. The Och-1 has cutting edges on the front (convex) face of the blade curvature; the Och-2 has cutting edges on the back (concave) face. They are used in pairs to provide buccal and lingual interproximal bone access from the appropriate approach direction.
