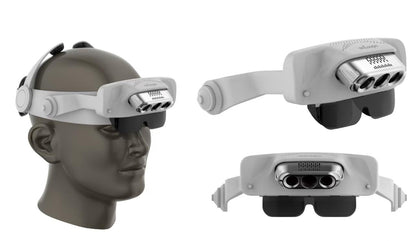

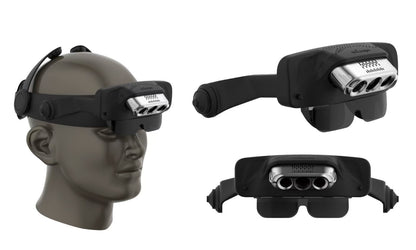

arLoupe G-L3508 3.5× / 8× Digital Dental Loupe

arLoupe 3D Electronic Loupe G-L3508

The arLoupe G-L3508 is a corded digital dental loupe designed for dental professionals who want magnified digital visualization, integrated illumination, and digital imaging in a head-mounted system.

With 3.5× and 8× digital magnification, the G-L3508 provides two levels of magnified visualization for different stages of clinical work. Its digital viewing system combines magnification, illumination, imaging, and an ergonomic head-mounted design in one integrated device.

Key Features of arLoupe G-L3508

• 3.5× / 8× digital magnification for switching between a broader field of view and higher-detail visualization.
• Digital 3D visualization through dual Micro OLED displays.
• 4K still image capture for high-resolution photographic documentation.
• Full HD 1080p video at 60 fps for recording and reviewing the magnified field.
• HDMI 2.0 output for displaying the image on a compatible external monitor or display.
• Integrated LED illumination with adjustable lighting and color temperature.
• Micro OLED displays for high-resolution digital visualization.
• Head-mounted design combining magnification, illumination, and imaging in a single system.
• Compatible with glasses, allowing the system to be used over most prescription eyewear.

3.5× / 8× Digital Magnification

The G-L3508 provides two digital magnification levels: 3.5× and 8×. The lower magnification provides a broader view for general visualization, while 8× provides increased magnification when greater detail is required.

Digital magnification allows the user to change the viewing level electronically without changing conventional optical loupe lenses.

Corded Design for Extended Procedures

The arLoupe G-L3508 is the corded configuration of the arLoupe G series. It uses a wire-control battery box designed to provide continuous power during extended procedures.

The manufacturer specifies the BP160 battery for the G-L model, with a capacity of 16,800 mAh at 3.7 V and up to approximately 6.5 hours of operating time.

This corded configuration can be particularly useful for professionals who prefer continuous power during longer clinical sessions.

Digital Imaging and Documentation

arLoupe G-L3508 combines digital magnification with image and video capture. The system can capture still images in 4K and record video in Full HD 1080p at 60 frames per second.

Images and video can be stored on a microSD card for review, documentation, education, training, or presentation.

The system also provides HDMI output, allowing the magnified view to be displayed on a compatible external monitor or screen.

Integrated Illumination

The arLoupe G-L3508 integrates illumination directly into the head-mounted system. Lighting can be adjusted to provide appropriate illumination of the working field during clinical use.

Adjustable color temperature is also available to support different visualization requirements.

Head-Mounted Ergonomic Design

The G-L3508 combines the magnification system, digital imaging, illumination, and display into a wearable head-mounted device.

The design allows the clinician to maintain hands-free visualization while working and is designed to support a more upright working posture compared with conventional magnification approaches.

The system can also be used with glasses, making it suitable for professionals who normally wear prescription eyewear.

External Display and Teaching

The HDMI output allows the arLoupe view to be shared on a compatible external display. This capability can be useful for teaching, demonstrations, training, consultation, and reviewing recorded procedures.

The first-person digital view can help students and colleagues see the same magnified field as the clinician during demonstrations or educational sessions.

Storage and Recording

The G-L3508 supports microSD storage for captured images and recorded video. The manufacturer specifies that video is recorded in H.264 format and automatically creates a new file every 15 minutes during continuous recording.

Available Sizes

arLoupe systems are available in different sizes based primarily on the user's working distance. The manufacturer provides S, M, and L sizing options.

The appropriate size should be selected according to the user's working distance and confirmed during a professional fitting or demonstration when possible.

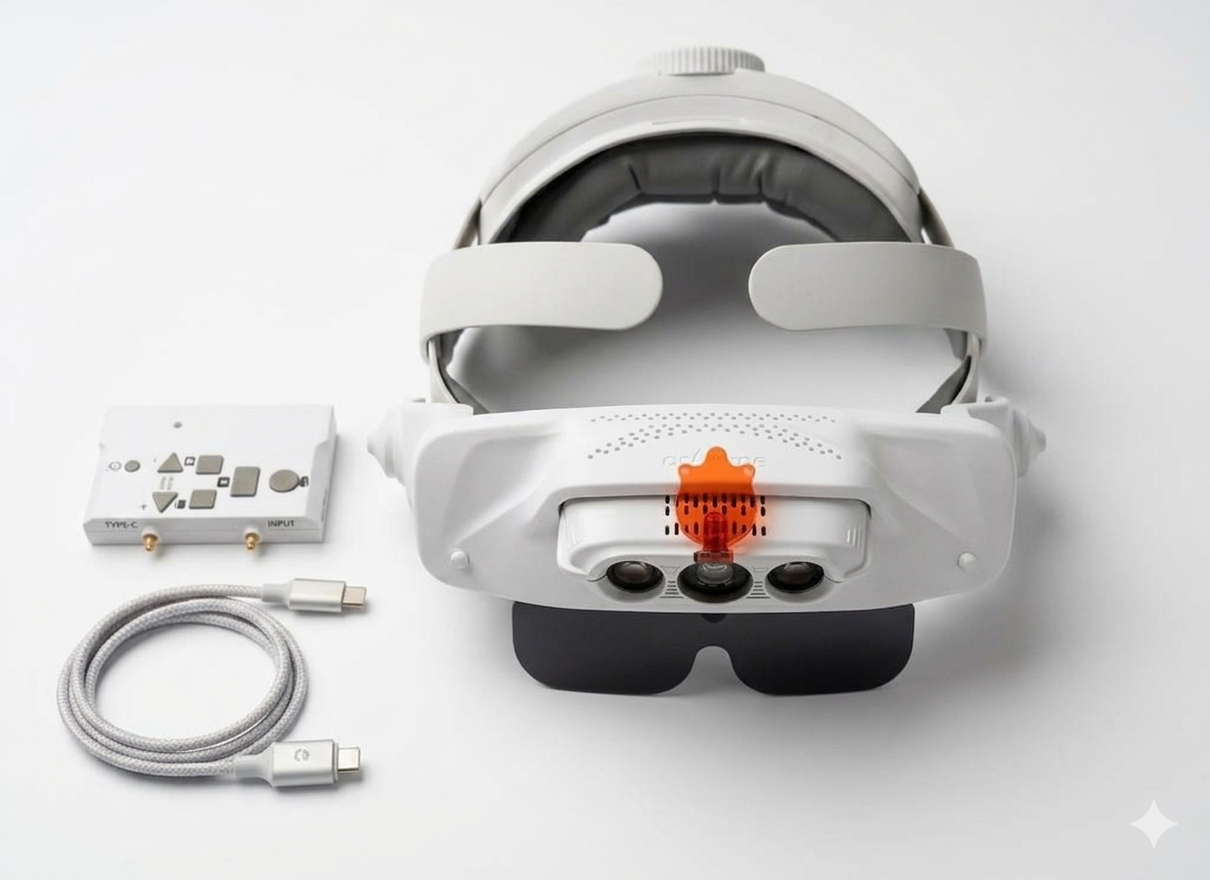

What's Included with arLoupe G-L3508

The arLoupe G-L3508 package includes the components required for operation, power, connectivity, storage, and routine maintenance:

• arLoupe G-L3508 main device
• Wire-control battery box
• Type-C cable
• HDMI cable
• MicroSD card
• MicroSD card reader
• Power cable
• Lens cleaning cloth

Professional Applications

arLoupe G-L3508 can be used in professional environments where magnified digital visualization is beneficial, including clinical procedures, documentation, education, training, demonstrations, presentations, and professional consultation.

Its integrated digital imaging capabilities also make it possible to record and share the magnified field for educational and documentation purposes.

Experience arLoupe G-L3508 Before You Decide

A demo device is available in Canada and the UAE. Dental professionals interested in experiencing the arLoupe G-L3508 before ordering can contact Dental Solutions to check demo availability and arrange a demonstration.

Contact Dental Solutions to learn more about arLoupe G-L3508, demo availability, pricing, and ordering.
