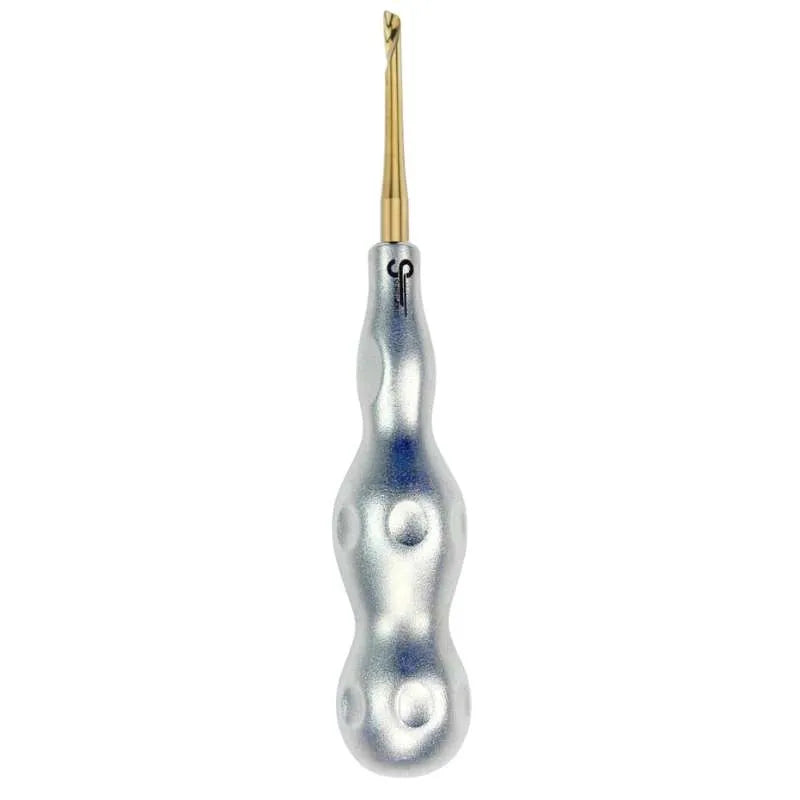

SurgiWorld – Twist Dental Elevator, Straight, Right-Handed Luxating Blade

The twist dental elevator right handed is built on a specific mechanical principle that distinguishes it from a standard straight luxating elevator. A conventional luxating elevator blade is flat and inserts into the PDL space to apply a wedging and prying force against the root surface. It severs PDL fibres primarily by pressure and displacement along the blade's flat contact face. The twist elevator's blade is instead formed with a helical rotation along its length, similar in concept to the fluted shaft of a drill bit, so that as the blade is inserted and rotated in the clinician's hand, the blade geometry simultaneously cuts through PDL fibres and generates an upward screw-like force vector that begins to displace the root coronally with each working stroke. \n \nThe practical result is a more efficient PDL severing sequence. Rather than needing multiple separate insertion strokes at different points around the root circumference to progressively release the tooth, the twist blade covers a broader PDL arc in each stroke by virtue of the helical blade geometry following the root's own curvature as the clinician applies slight apical pressure and rotation. This is described by multiple manufacturers as the blade engaging the root's natural curvature, which means the helical surface conforms to the convex profile of the root face rather than pressing a flat surface against a curved one. \n \nThe right-handed designation refers to the direction of the blade's helical twist. With the instrument held in the normal working grip, the blade of the right-handed version is oriented so that the PDL engagement and rotational force vector runs in the direction that corresponds to correct anatomical use from the mesial aspect on the right side of the arch and from the distal aspect on the left side. Attempting to use a right-handed twist elevator from the opposite approach direction does not generate the same mechanical advantage, because the blade geometry runs counter to the intended force direction. This is why the right and left versions are clinically necessary as a pair rather than one version being universal. \n \nThe blade is thin and sharp-edged, consistent with a luxating rather than a lever elevator design. It enters the PDL space without requiring significant bone displacement or expansion of the socket wall, which preserves the buccal cortical plate during extraction. This is particularly relevant in implant-site extraction cases where immediate or delayed implant placement follows, and socket wall integrity directly affects the implant site dimensions. Medical-grade stainless steel, corrosion resistant, autoclavable at standard steam sterilization parameters. \n \n  \n

Product Features

\n

\n
• Twist dental elevator right handed helical blade simultaneously cuts PDL fibres and generates a rotational coronal force vector in a single working stroke
\n
• Blade geometry engages the natural curvature of the root surface, improving contact and efficiency over a flat luxating blade
\n
• Right-handed blade orientation correctly matches the biomechanical force direction for mesial access on the right arch and distal access on the left arch
\n
• Thin, sharp luxating blade enters the PDL space with minimal socket wall contact, preserving buccal cortical plate integrity
\n
• Straight shank provides direct access and clear tip visibility across anterior and premolar regions
\n
• Pairs with the left-handed version for complete PDL coverage around the full circumference of all tooth positions
\n
• Medical-grade stainless steel, corrosion resistant, fully autoclavable
