arLoupe WS3509 Wireless Digital Dental Loupe

arLoupe WS3509 Wireless Digital Dental Loupe Australia

The arLoupe WS3509 is a wireless 3D digital dental loupe available for Australian dental professionals, combining digital magnification, integrated illumination, clinical imaging, and first-person recording in one head-mounted system.

The WS3509 provides four digital magnification levels: 3.5×, 5×, 8×, and 9×, allowing clinicians to select the level of visualization that best suits different procedures, documentation requirements, and educational applications.

Unlike conventional optical loupes, arLoupe uses digital imaging technology with a high-resolution CMOS sensor and Micro OLED display to provide a magnified digital view of the working field. Its wireless configuration allows greater freedom of movement without a cable connecting the head-mounted device to a separate battery box.

Key Features

• Four digital magnification levels: 3.5×, 5×, 8×, and 9×.
• Wireless head-mounted design for greater freedom of movement during clinical procedures.
• Digital 3D visualization using a high-resolution CMOS sensor and Micro OLED display.

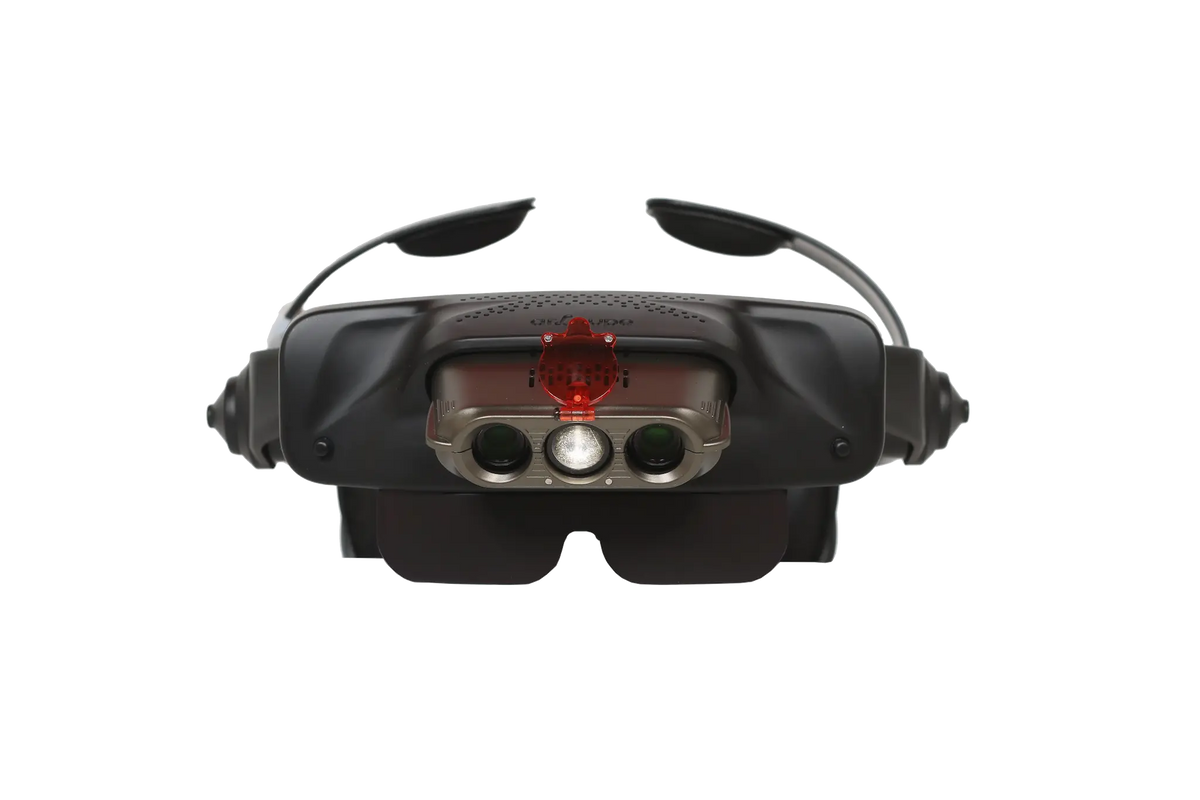

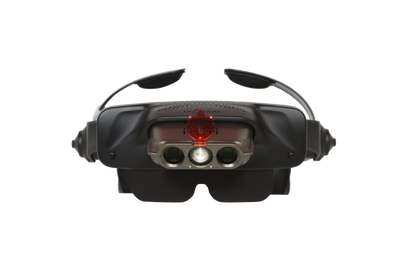

• Integrated LED illumination for lighting the clinical working field.
• 4K photography for high-resolution clinical images and case documentation.
• 1080p video recording for recording procedures, demonstrations, and clinical cases.
• First-person perspective for recording the clinician's point of view.
• Micro OLED display providing a large virtual viewing experience in a compact head-mounted system.
• Real-time HDMI screen casting for clinical teaching, presentations, demonstrations, and patient communication.
• MicroSD card storage with support for compatible cards up to 512 GB.
• No interpupillary adjustment required, simplifying setup and use.
• Compatible with prescription glasses.
• Adjustable working distances: 40 cm, 45 cm, and 50 cm.
• Adjustable camera angle for flexible positioning during clinical procedures.
• Wireless remote control for convenient operation.

3.5× / 5× / 8× / 9× Digital Magnification

The arLoupe WS3509 provides four digital magnification levels: 3.5×, 5×, 8×, and 9×.

The different magnification levels allow clinicians to select the appropriate level of digital visualization according to the procedure, working distance, and level of detail required.

At maximum magnification, the system applies additional digital image enhancement according to the manufacturer's specifications.

Wireless Freedom for Clinical Work

The wireless configuration allows clinicians to move more freely around the dental chair without a cable connecting the head-mounted device to a separate battery box.

The system includes a head-mounted battery configuration and wireless remote control for convenient operation during clinical procedures.

Digital Visualization & Clinical Recording

The WS3509 captures the clinical field through its high-resolution CMOS sensor and displays the magnified image through its integrated Micro OLED display.

The system supports 4K still photography and 1080p video recording, making it suitable for clinical documentation, case review, teaching, patient education, and professional presentations.

First-person recording allows captured images and video to reflect the clinician's viewing perspective during a procedure.

Real-Time HDMI Screen Casting

The WS3509 supports real-time HDMI screen casting. Connect the system to a compatible external display to share the magnified view during teaching, demonstrations, consultations, presentations, and patient communication.

MicroSD Storage

Images and videos can be stored on a compatible MicroSD card. Manufacturer documentation specifies support for storage cards up to 512 GB.

Ergonomic Head-Mounted Design

The arLoupe head-mounted system provides hands-free digital visualization while allowing the clinician to adjust viewing position according to the procedure.

The camera angle can be adjusted for different working positions, while supported working distances include 40 cm, 45 cm, and 50 cm.

The WS3509 can also be used with prescription glasses, making it suitable for clinicians who normally wear corrective eyewear.

Clinical & Educational Applications

• Magnified clinical visualization
• Clinical case recording and documentation
• Procedure review and discussion
• Dental education and training
• Patient education and communication
• Clinical presentations and demonstrations

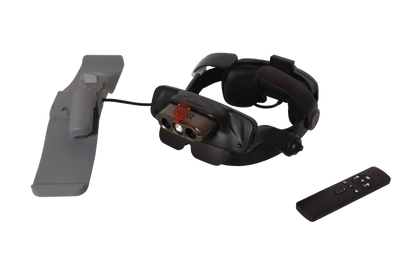

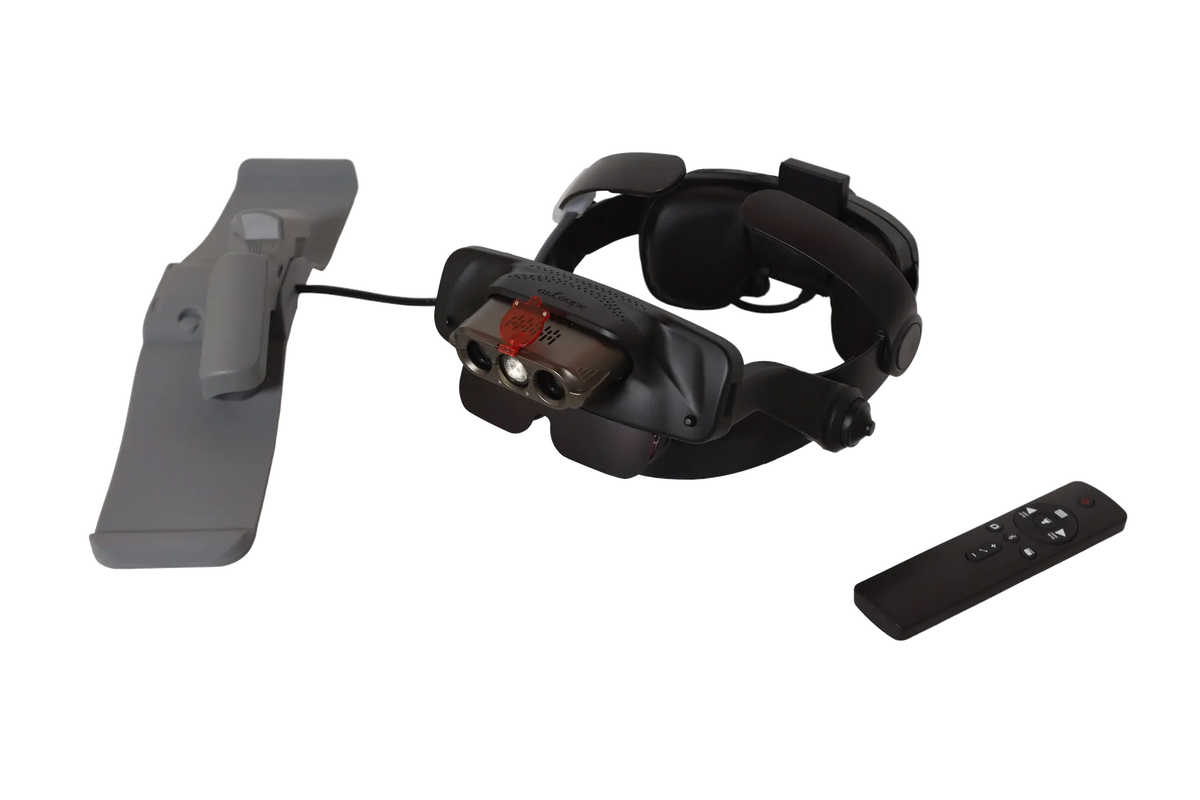

What's Included

• arLoupe WS3509 main device

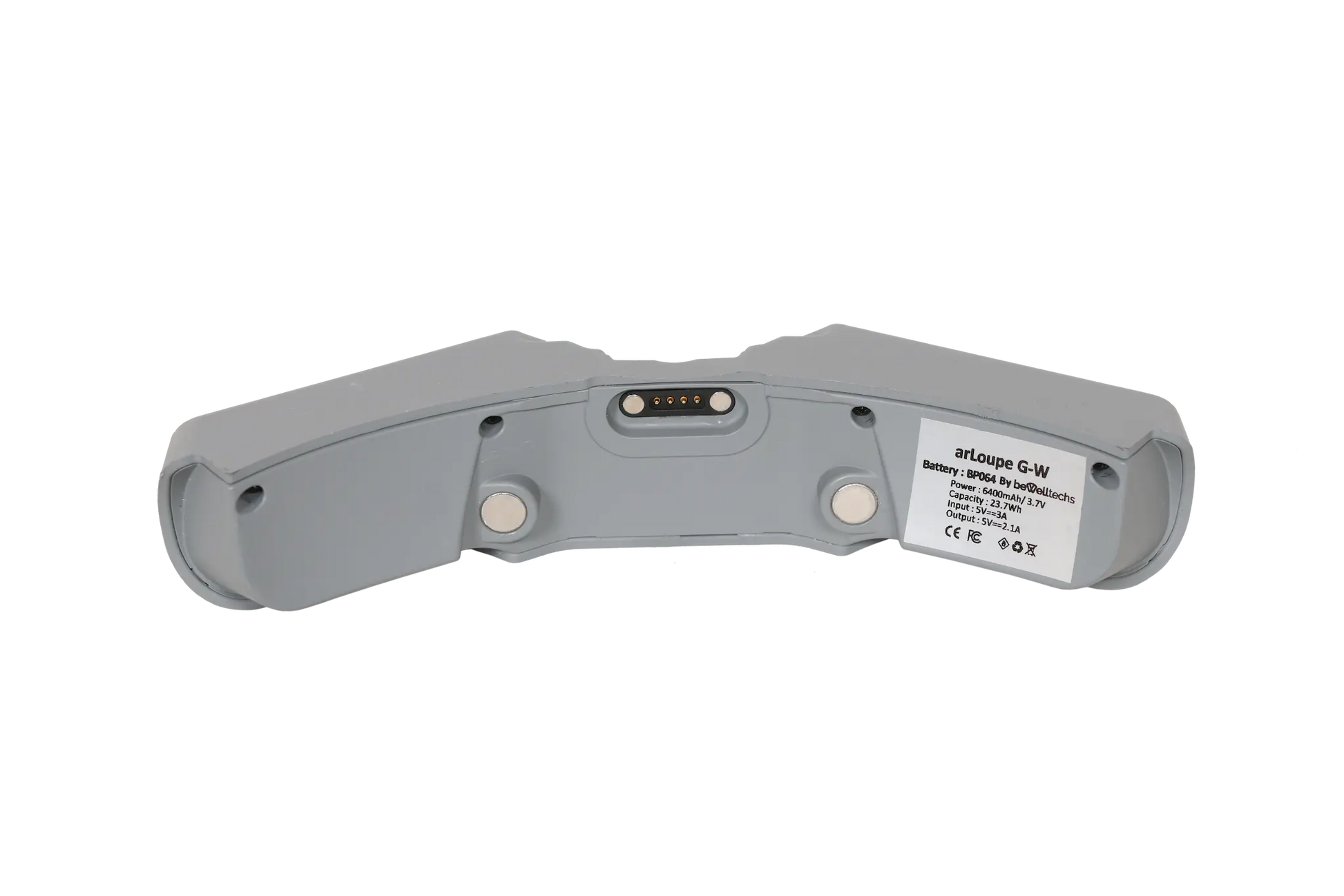

• Battery
• Battery shoulder pad
• Wireless remote control
• Type-C cable
• HDMI cable
• Lens cleaning cloth

Note: Package contents and accessories may vary according to the supplied configuration.

Why Choose the arLoupe WS3509?

The arLoupe WS3509 combines digital magnification, integrated illumination, photography, video recording, and wireless operation in one head-mounted visualization system.

With four magnification levels from 3.5× to 9×, clinicians can adapt visualization to different procedures while capturing and sharing the clinical field for documentation, communication, and education.

Its wireless design provides greater freedom of movement, while HDMI output and first-person recording capabilities make the system suitable for both clinical and educational environments.

Available for Australia 🇦🇺

The arLoupe WS3509 is available for delivery to Australia. Australian customers can shop in AUD and receive direct international shipping with tracking.

Dental Solutions provides remote product guidance and support before and after purchase.

Australian import GST, customs clearance fees, duties, or other import charges may apply. For complete information, visit our Shipping to Australia page.

arLoupe Demo in Australia

A physical arLoupe demo program is not currently available in Australia.

Australian dental professionals are welcome to contact Dental Solutions for product videos, model comparisons, magnification guidance, and remote consultation before ordering.

Need Help Choosing Your arLoupe?

Not sure which model or magnification is right for you? Contact Dental Solutions before ordering and we can help you compare the available options.

💬 Chat With Dental Solutions on WhatsApp

Download the User Manual

For detailed information about operation, features, connections, and use of the arLoupe system, download the English user manual:

📘 Download the arLoupe User Manual (English)

Manufacturer: Bewelltech Inc.
Brand: arLoupe
Model: WS3509
Type: Wireless 3D Digital Dental Loupe
