arLoupe WS3509 Wireless Digital Dental Loupe

arLoupe WS3509 Wireless Digital Dental Loupe

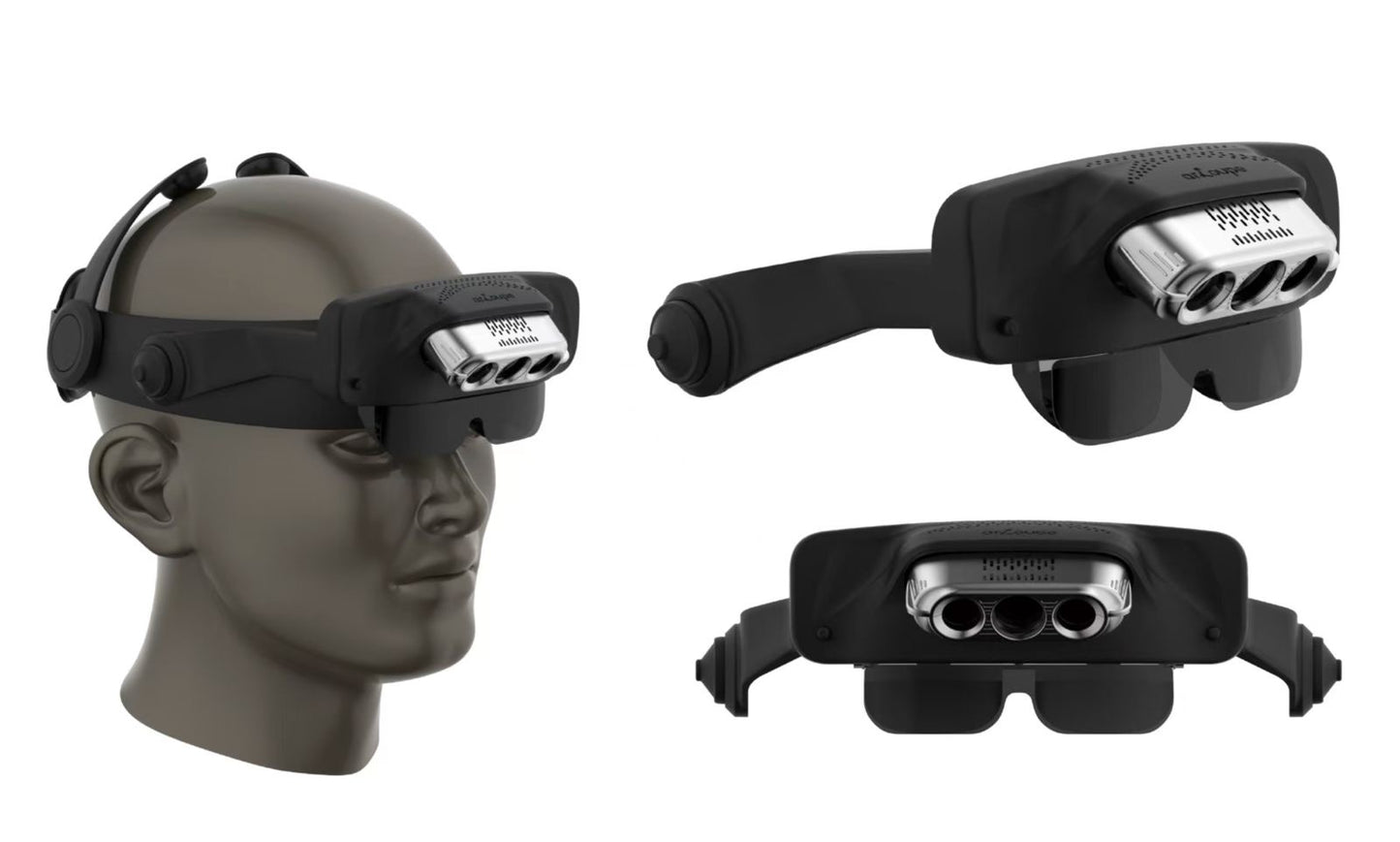

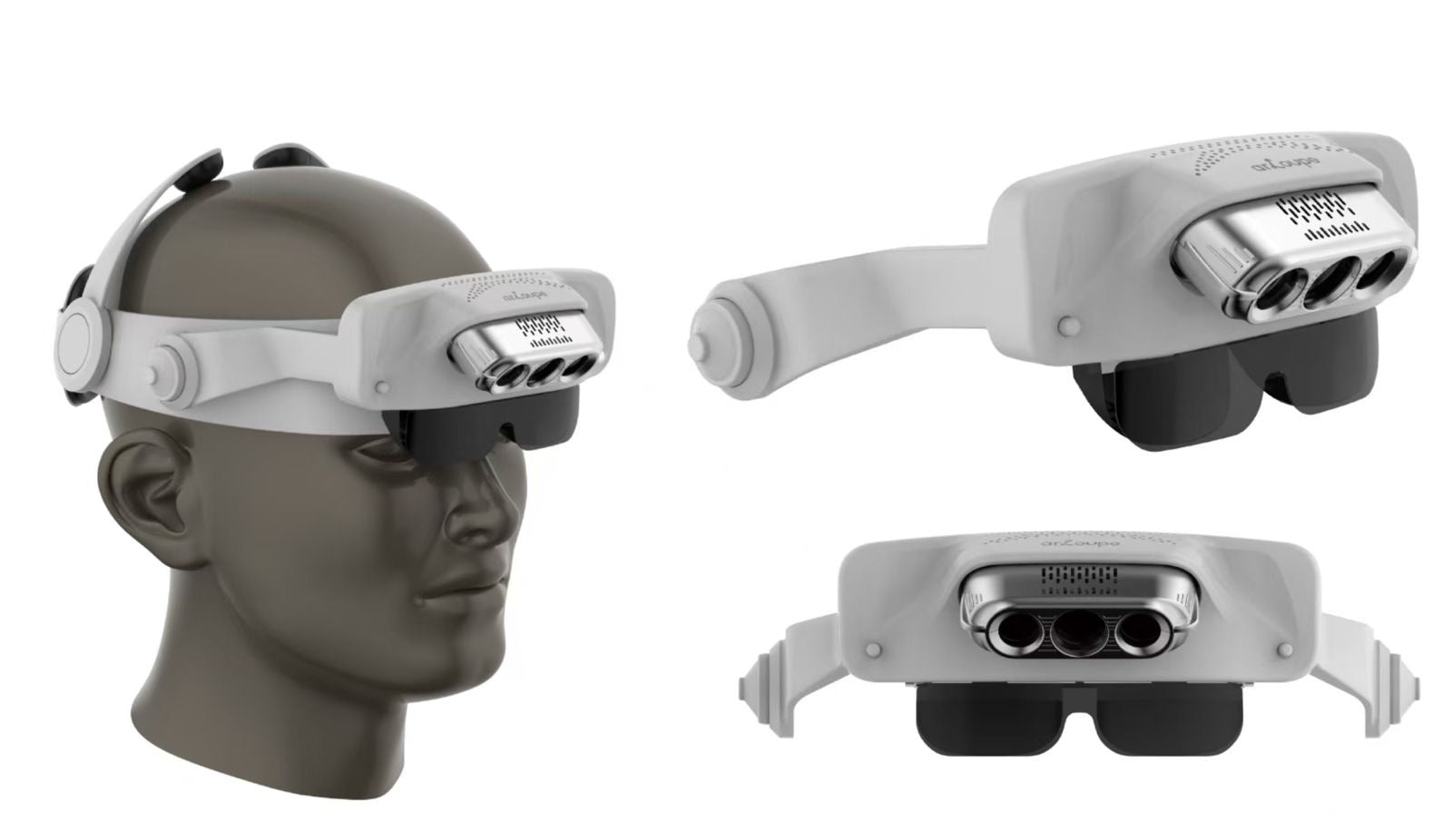

The arLoupe WS3509 is a wireless 3D digital dental loupe designed to combine magnified visualization, integrated illumination, digital imaging, and first-person clinical recording in a single head-mounted system.

The WS3509 provides four digital magnification levels: 3.5×, 5×, 8×, and 9×, allowing dental professionals to select the appropriate level of magnification for different clinical, documentation, and educational applications.

Unlike conventional optical loupes, arLoupe uses digital imaging technology with a high-resolution CMOS sensor and Micro OLED display to provide a magnified digital view of the working field. Its wireless design allows clinicians to work without a cable connecting the head-mounted device to a separate battery box.

Key Features

• Four digital magnification levels: 3.5×, 5×, 8×, and 10× for different levels of clinical visualization.
• Wireless head-mounted design for greater freedom of movement during clinical procedures.
• Digital 3D visualization using a high-resolution CMOS sensor and Micro OLED display.
• Integrated LED illumination for lighting the clinical working field.
• 4K photography for high-resolution clinical images and case documentation.
• 1080p video recording for recording procedures, demonstrations, and clinical cases.
• First-person perspective for recording the clinician's point of view.
• Micro OLED display providing a large virtual viewing experience in a compact head-mounted system.
• Real-time HDMI screen casting for clinical teaching, presentations, and patient communication.
• MicroSD card storage with support for cards up to 512 GB.
• No interpupillary adjustment required, simplifying setup and use.
• Compatible with prescription glasses.
• Adjustable working distances of 40 cm, 45 cm, and 50 cm.
• Adjustable camera angle for flexible positioning during clinical procedures.
• Wireless remote control for convenient operation.

3.5× / 5× / 8× / 9× Digital Magnification

The arLoupe WS3509 provides four digital magnification levels: 3.5×, 5×, 8×, and 9×.

The different magnification levels allow the clinician to choose the appropriate level of digital visualization according to the procedure, working distance, and level of detail required.

At maximum magnification, the system applies additional digital image enhancement according to the manufacturer's specifications.

Wireless Freedom for Clinical Work

The wireless configuration allows clinicians to move freely around the dental chair without a cable connecting the head-mounted device to a separate battery box.

The system includes a head-mounted battery configuration and wireless remote control, providing convenient operation during clinical procedures.

Digital Visualization & Recording

The WS3509 captures the clinical field through its high-resolution CMOS sensor and displays the magnified image through its integrated Micro OLED display.

The system supports 4K still photography and 1080p video recording, making it suitable for clinical documentation, case review, teaching, patient education, and professional presentations.

The first-person perspective allows recorded images and video to reflect the clinician's viewing position during a procedure.

Real-Time HDMI Screen Casting

The WS3509 supports real-time HDMI screen casting. Connect the system to a compatible external display to share the magnified view during teaching, demonstrations, consultations, and patient communication.

MicroSD Storage

Images and videos can be stored on a compatible MicroSD card. The manufacturer's documentation specifies support for storage cards of up to 512 GB.

Ergonomic Head-Mounted Design

The arLoupe head-mounted system is designed to provide a first-person digital view while maintaining hands-free operation during clinical work.

The camera angle can be adjusted to accommodate different working positions, while the system supports working distances of 40 cm, 45 cm, and 50 cm.

The WS3509 can also be used with prescription glasses, making it suitable for dental professionals who normally wear corrective eyewear.

Clinical & Educational Applications

• Clinical treatment and magnified visualization
• Clinical case recording and documentation
• Procedure review and discussion
• Live teaching and dental education
• Patient education and communication
• Clinical presentations and demonstrations

What's Included

• arLoupe WS3509 main device
• Battery
• Battery shoulder pad
• Wireless remote control
• Type-C cable
• HDMI cable
• Lens cleaning cloth

Note: Package contents and accessories may vary according to the supplied configuration.

Why Choose arLoupe WS3509?

The arLoupe WS3509 combines digital magnification, integrated illumination, imaging, recording, and wireless operation in one head-mounted system.

With four magnification levels from 3.5× to 9×, the WS3509 provides flexibility for different visualization requirements while allowing clinicians to capture and share the magnified field for documentation, education, and communication.

Its wireless configuration provides freedom of movement without the connection to a separate corded battery box, while HDMI output and first-person recording capabilities make the system suitable for both clinical and educational environments.

Demo Device Available

A demo device is available in Canada and the UAE. Dental professionals interested in experiencing arLoupe before ordering can contact Dental Solutions to check demo availability and arrange a demonstration.

Download the User Manual

For detailed information about operation, features, connections, and use of the arLoupe system, download the English user manual:

📘 Download the arLoupe User Manual (English)

Manufacturer: Bewelltech Inc.
Brand: arLoupe
Model: WS3509
Type: Wireless 3D Digital Dental Loupe
